260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
| Place of Origin | China |
|---|---|
| Brand Name | Hengwang |
| Certification | CE |
| Model Number | HQZ-260L |
| Minimum Order Quantity | 1 |
| Price | USD2500-5000/set |
| Packaging Details | Wooden box, container, etc |
| Delivery Time | 5-8 workdays |
| Payment Terms | L/C ，D/P , T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HQZ-260L | Drill Mast (m) | 3 |
|---|---|---|---|
| Drilling Diameter (mm) | 130-305 | Drilling Depth (m) | 260 |
| Walking Speed (km/h) | 2.5 | Main Motor Power | 76kw |
| Working Pressure (mpa) | 1.7-3.0 | Air Consumption (m³/min) | 17-31 |
| Drill Pipe Diameter (mm) | 76/89 | Drill Pipe Length (m) | 1.5/2.0/3.0 |
| Lifting Force (T) | 17 | ||
| Highlight | 260m Water Well Drilling Rig,Pneumatic Borehole Drilling Rig |
||
Product Description
260m Drilling Depth Crawler Pneumatic Borehole Core Water Well drilling machine
Drilling depth: 260m
Drilling diameter: 130-305mm
Engine Power: 76/77.3Kw
Product Description:
Hengwang Pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine need use together with air compressor , it can add mud pump and foam pump .It need use different drilling tools like:drilling rod ,hammer,rock drill bits ,etc.The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
Product parameters:
| Model | HQZ260L | HQZ260L |
| Drill Mast (m) | 3 | 6 |
| Drilling diameter (mm) | 130-305 | 130-305 |
| Drilling depth (m) | 260 | 260 |
| Walking Speed (km/h) | 2.5 | 2.5 |
| Main motor power | 76kw | 76kw |
| Working pressure (mpa) | 1.7-3.0 | 1.7-3.0 |
| Air consumption (m³/min) | 17-31 | 17-31 |
| Drill pipe diameter (mm) | 76/89 | 76/89 |
| Drill pipe length (m) | 1.5/2.0/3.0 | 3.0/6.0 |
| Lifting force (T) | 17 | 17 |

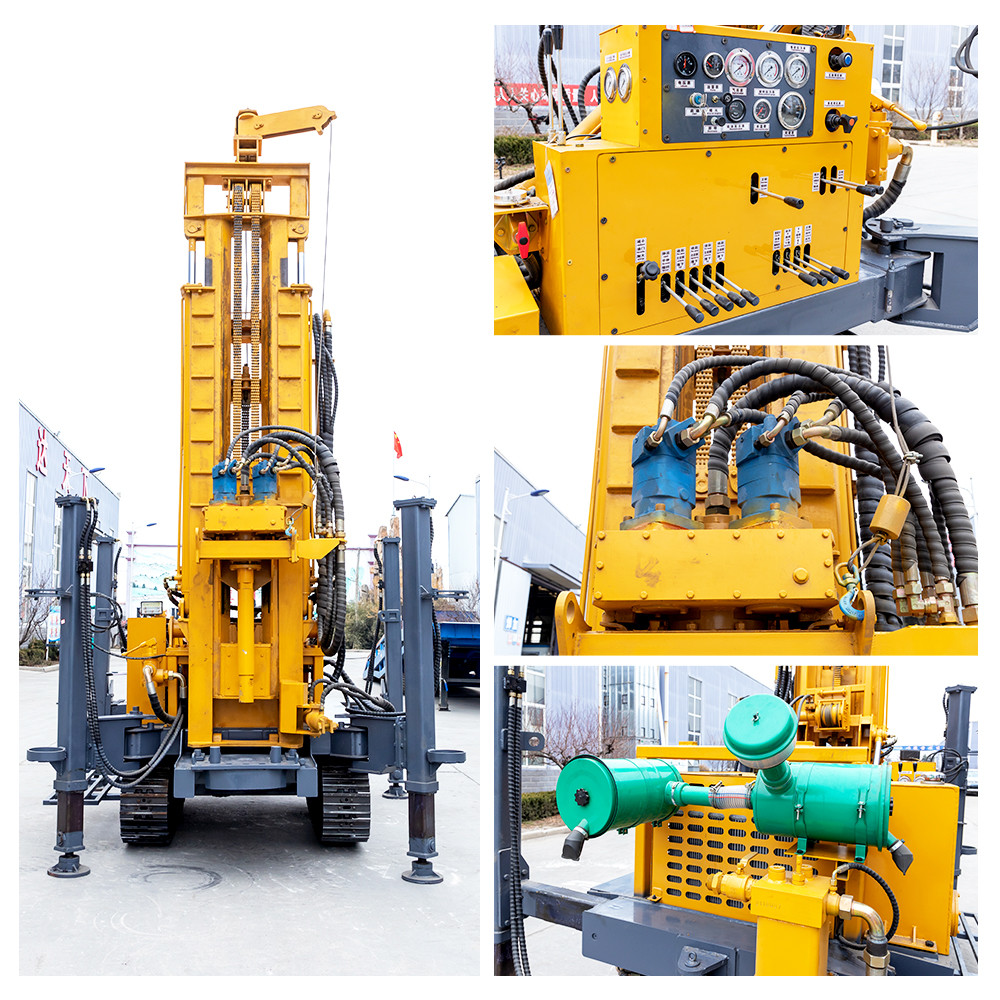

Product Details:
Main feature:
-Crawler walking is more suitable for muddy field movement.
-Pneumatic drilling rig, with air compressor, the efficiency is equivalent to 10~15 times of ordinary drilling rig.
-The drilling on the rock is mainly based on the down-the-hole hammer drilling process. The down-the-hole hammer rock drilling operation efficiency is high, and the drilling cost per meter is lower.
