180HP Heavy Duty Bulldozer Yellow Precision Control Multi Purpose Construction

Place of Origin China
Brand Name HW
Model Number 16DE
Minimum Order Quantity 1
Price USD5000-8000/set
Packaging Details Wooden box, container, etc
Delivery Time 5-8 workdays
Payment Terms MoneyGram, D/P, D/A
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Parameter Name HW16DE Operating Weight 17500KG
Power/speed (kw/rpm) 131kw/1850rpm Engine Model WD10G178E25
Blade Height 5140*3388*3032(mm) Fuel Tank Capacity 320L
Operating Temperature -20°C To +50°C Blade Type Straight Tilt /Angle/U
Blade Capacity 4.5/4.3/-(m³) Maximum Lifting Height 1095/1110/1095mm
Highlight

180HP Heavy Duty Bulldozer

,

Yellow Heavy Duty Bulldozer

,

Precision Control Heavy Duty Bulldozer

Leave a Message
Product Description

HW16DE Bulldozer - Unleash Power and Precision from Hengwang Group

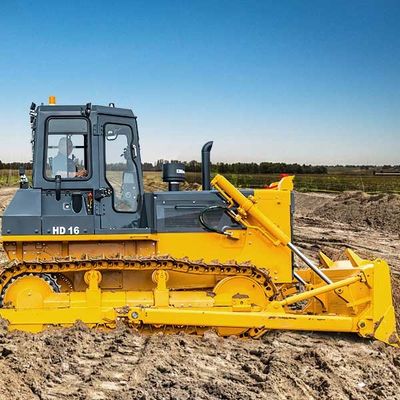

180HP Heavy Duty Bulldozer Yellow Precision Control Multi Purpose Construction 0

Product Description: Introducing the HW16DE Bulldozer, a powerhouse designed for heavy-duty operations. Manufactured by Hengwang Group, this bulldozer offers robust performance at a competitive bulldozer price. With a working weight of 17,500kg, it's engineered to handle challenging terrains with ease. Equipped with the reliable WD10G178E25 engine, it ensures power and efficiency, making it an excellent bulldozer for sale.

Model

HW16D

HW16DE

Working Weight

17,000kg

17,500kg

Minimum Turning Radius

4,466mm

4,513mm

Ground Length

2,430mm

2,635mm

Ground Voltage

0.067kpa

0.058kpa

Engine Model

WD10G178E25

WD10G178E25

Engine Power/Speed

131kw/1850rpm

131kw/1850rpm

Dimensions

5,1403,3883,032mm

5,1403,3883,032mm

Forward Speed

0~9.63 km/h

0~9.63 km/h

Reverse Speed

0~12.53 km/h

0~12.53 km/h

Ground Clearance

400mm

400mm

Track Center Distance

1,880mm

1,880mm

Track Shoe Width

510/560mm

510/560mm

Number of Track Shoes

37 (single side/piece)

39 (single side/piece)

Chain Rail Pitch

203.2mm

203.2mm

Number of Idler

2 (single side)

2 (single side)

Number of Track Roller

6 (single side)

7 (single side)

Mailbox Capacity

320L

320L

Key Features:

  • Powerful 131kw engine for optimum performance.

  • Versatile blade options: Straight Tilt / Angle / U.

  • Precise control with a minimum turning radius of 4,513mm.

  • Hydrostatic transmission for smooth operation in all conditions.

180HP Heavy Duty Bulldozer Yellow Precision Control Multi Purpose Construction 1

Applications: Ideal for large-scale earthwork projects, the HW16DE Bulldozer excels in various applications. With a robust build and powerful engine, it ensures efficiency and precision in tasks like leveling, pushing, and excavating. Hengwang Group's commitment to quality and performance is reflected in every aspect of this heavy-duty bulldozer.

Support and Services: Our dedicated technical support team, backed by Hengwang Group's expertise, is available 24/7 to assist with troubleshooting, repairs, and maintenance. Benefit from on-site and in-shop services to maximize the performance and lifespan of your HW16DE Bulldozer. Invest in a reliable bulldozer from a trusted bulldozer manufacturer.

Ripper and Blade Specifications:

Specification

HW16D

HW16DE

Blade Form

Straight Tilt / Angle / U

Straight Tilt / Angle / U

Blade Capacity

4.5/4.3/- (m³)

4.5/4.3/- (m³)

Blade Weight

2,454/2,289/2,672 (kg)

2,454/2,289/2,672 (kg)

Blade Width

3,388/3,970/3,556mm

3,388/3,970/3,556mm

Blade Height

1,149/1,090/1,120 (mm)

1,149/1,090/1,120 (mm)

Max Lifting Height

1,095/1,110/1,095mm

1,095/1,110/1,095mm

Max Cutting Depth

400/-/400mm

400/-/400mm

Ripper Specifications:

  • Three Shank Ripper with a weight of 1,709kg.

  • Maximum Ripping Depth: 572mm.

  • Maximum Lifting Height: 592mm.

Choose the HW16DE Bulldozer for unparalleled power, precision, and reliability from Hengwang Group, a leading bulldozer manufacturer, all at a competitive bulldozer price.
